Cone Debone Line for semi-automatic portioning and deboning

  • The Cone Debone Line enables an efficient portioning and deboning of whole birds or pieces such as breasts

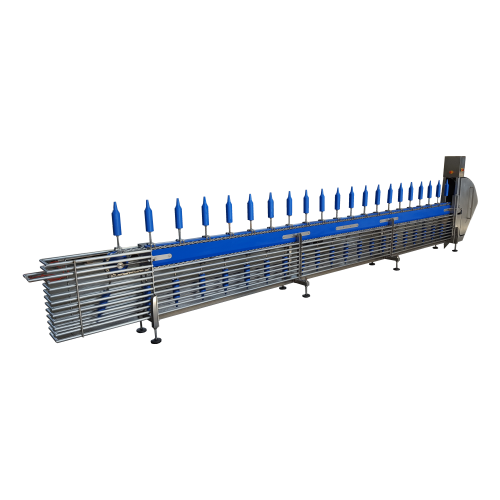

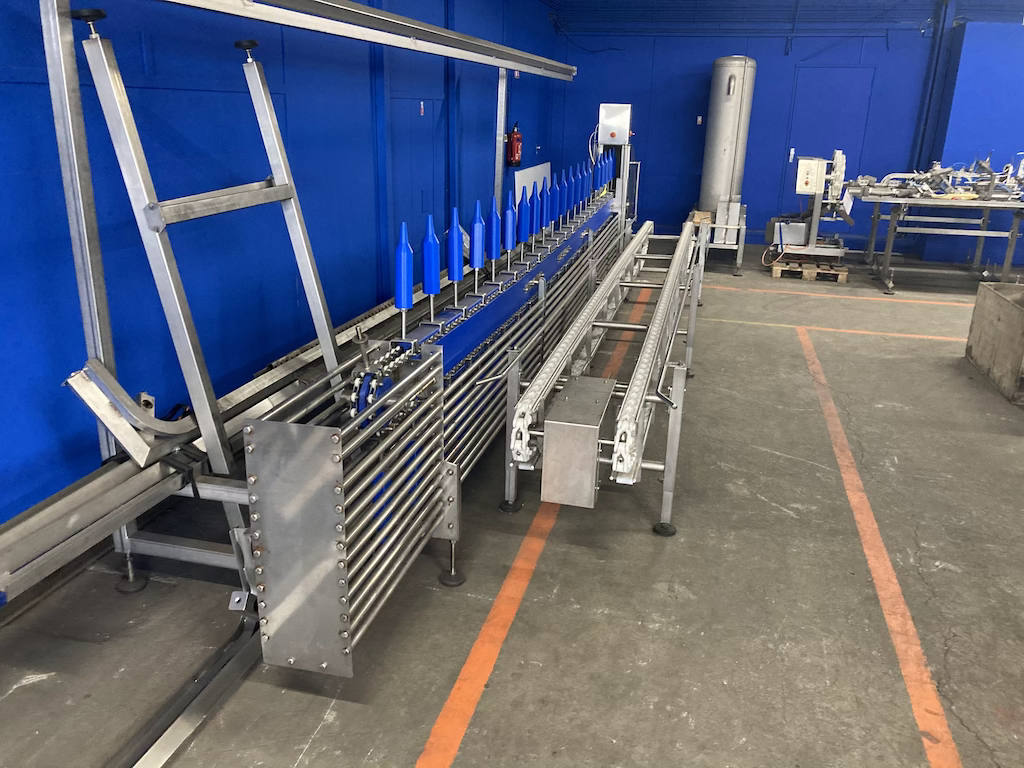

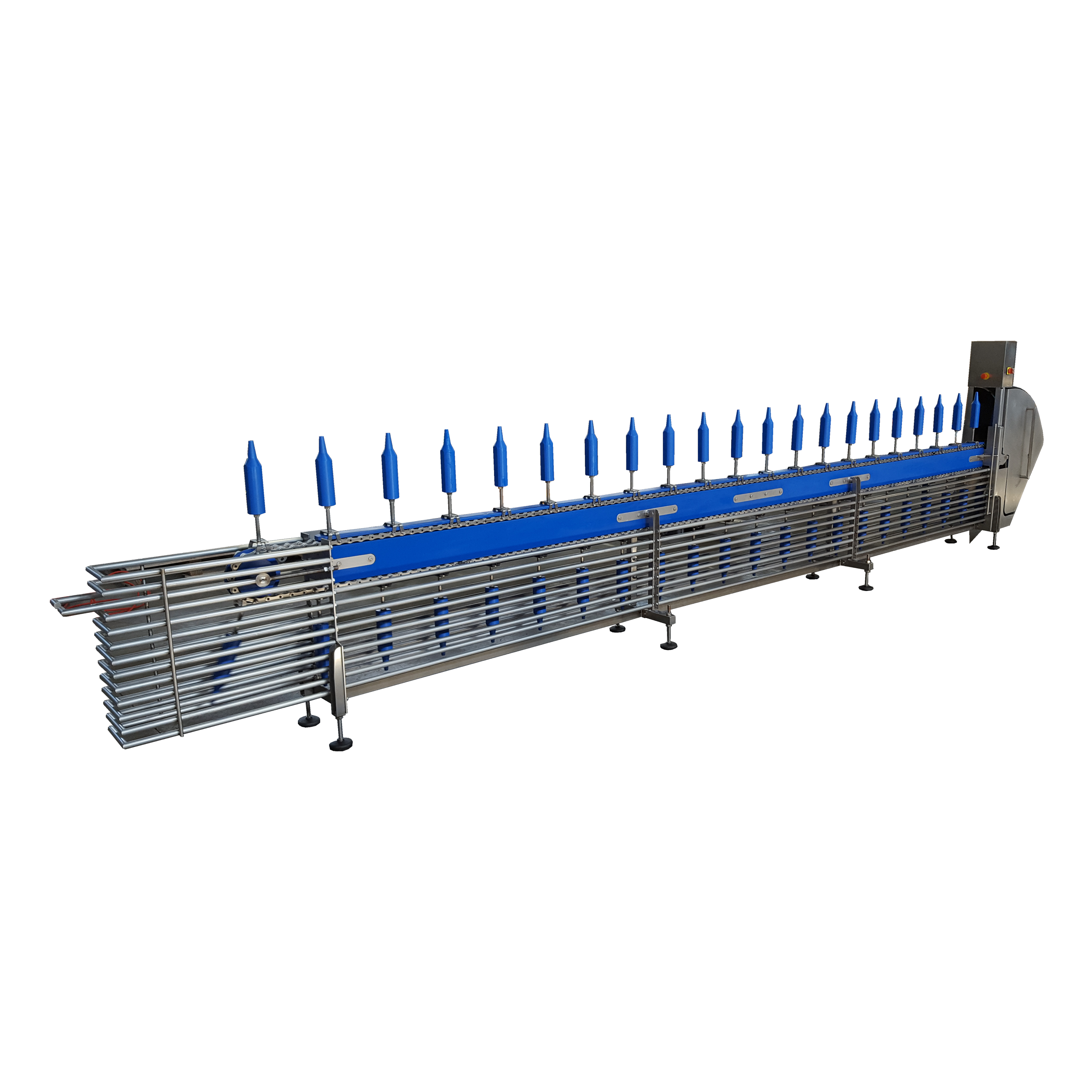

  • Working length from 3 meters to 18 meters. The line shown on this page is 8 meters long
  • Capacity per hour depends on line speed, required cuts/actions and operator skill
CDC

Cone Debone Line – debone or portion line

Cone Debone Line is an efficient semi-automatic cone debone line to portion whole birds or debone pieces such as breasts. Working length and line speed adjustable to customer requirements! Read our key benefits!

Key Benefits of Cone Debone Line

  • Ergonomic, reliable design to debone or portion birds;

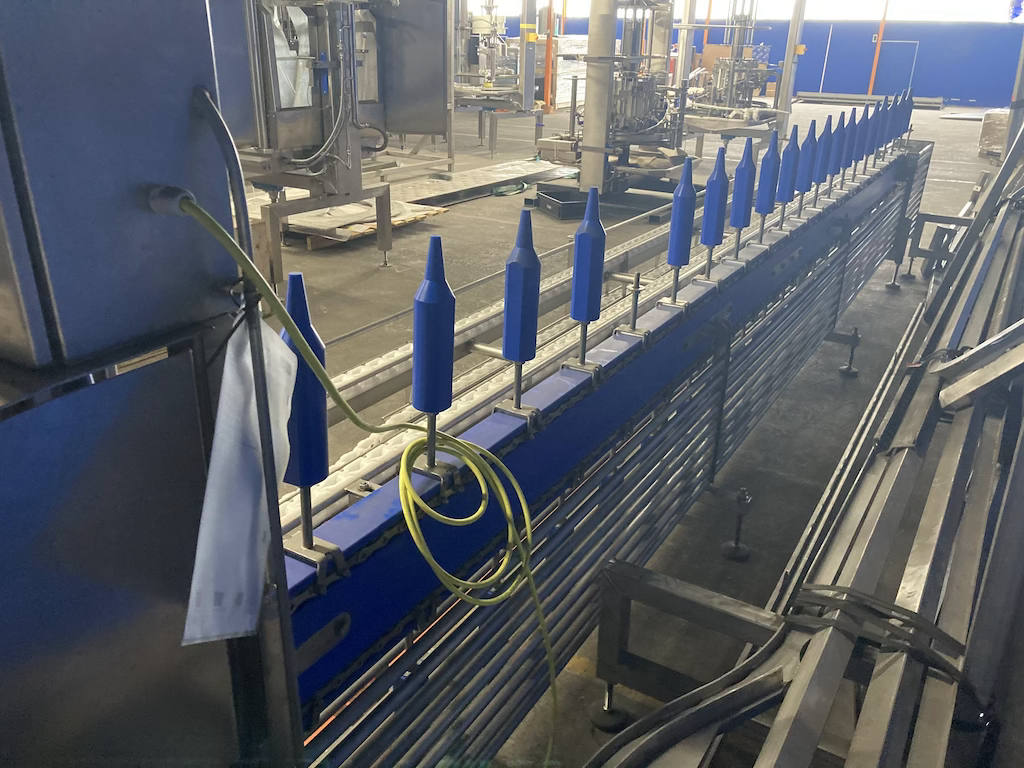

  • Product is fixed on food-industry approved nylon cones;
  • As the cone debone line runs, the product is conveyed along line personnel who carry out their designated cut or operation;
  • Working length from 3 meters to 18 meters. The cone debone line shown on this page is 8 meters long;
  • The cone debone line capacity per hour depends on line speed, required cuts/actions and operator skill;
  • Variable speed control depending on your debone production requirements;
  • The Cone debone line is easy to clean and maintain
Length3000 - 18000 mm
Width486 mm
Height1318 mm
Cone Pitch6 - 8 - 10- 12 inch
Installed power0.37 kW
