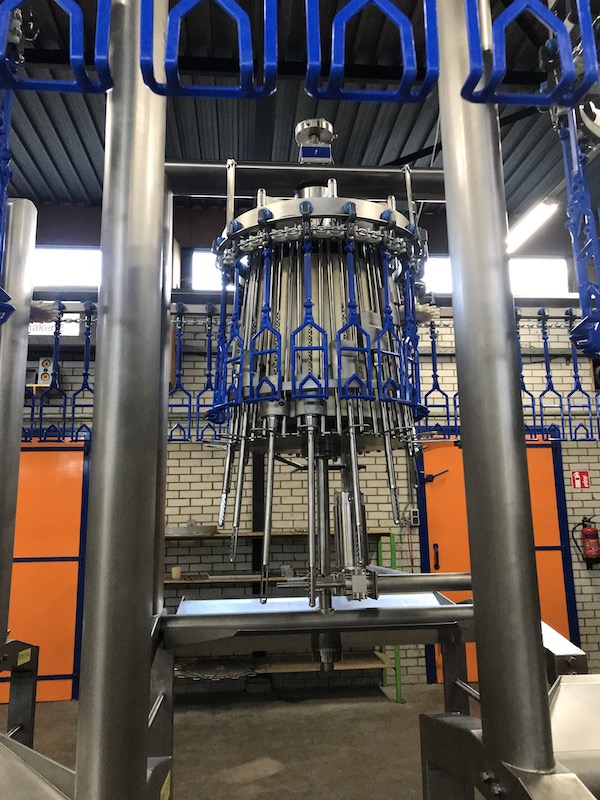

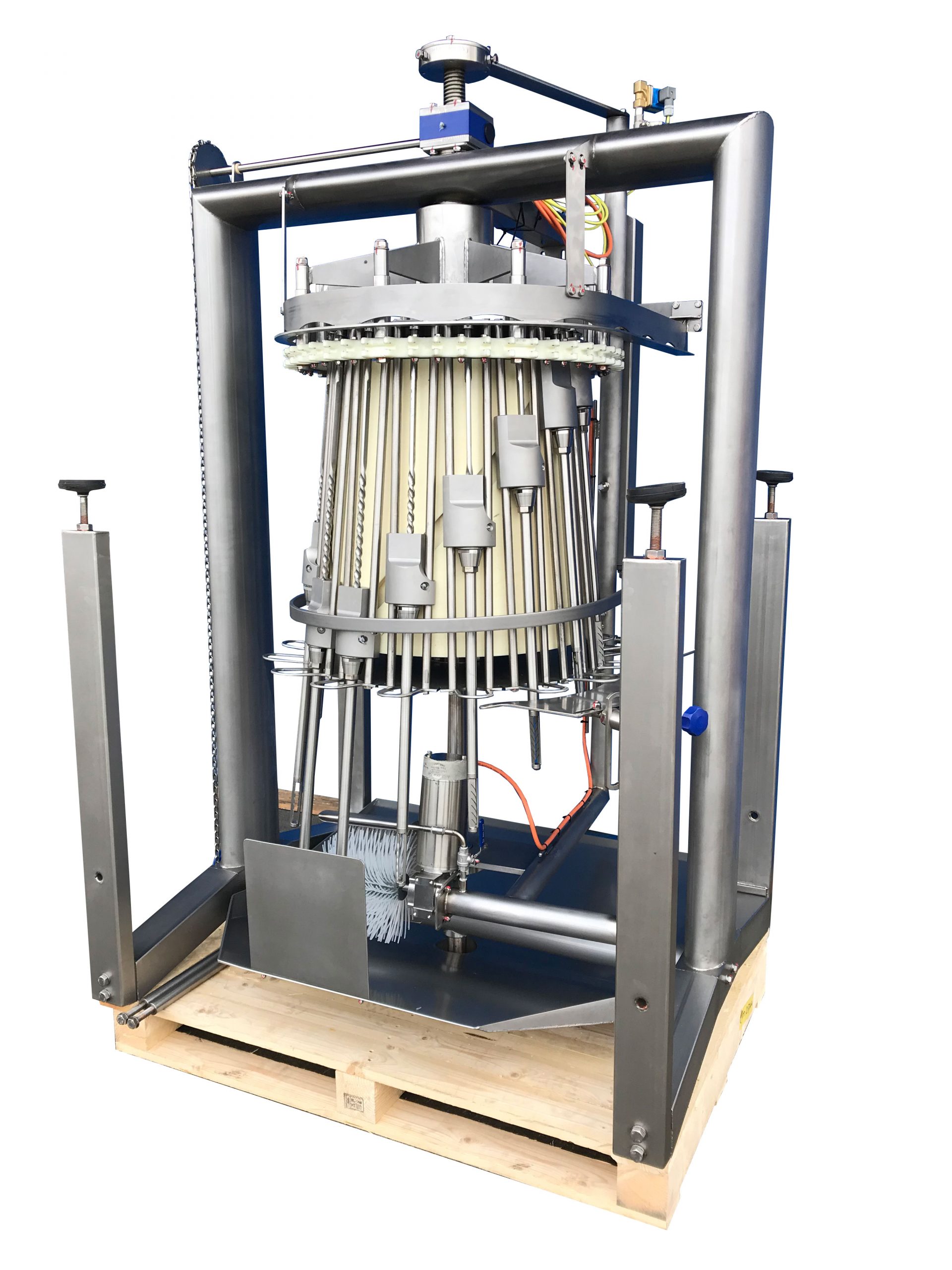

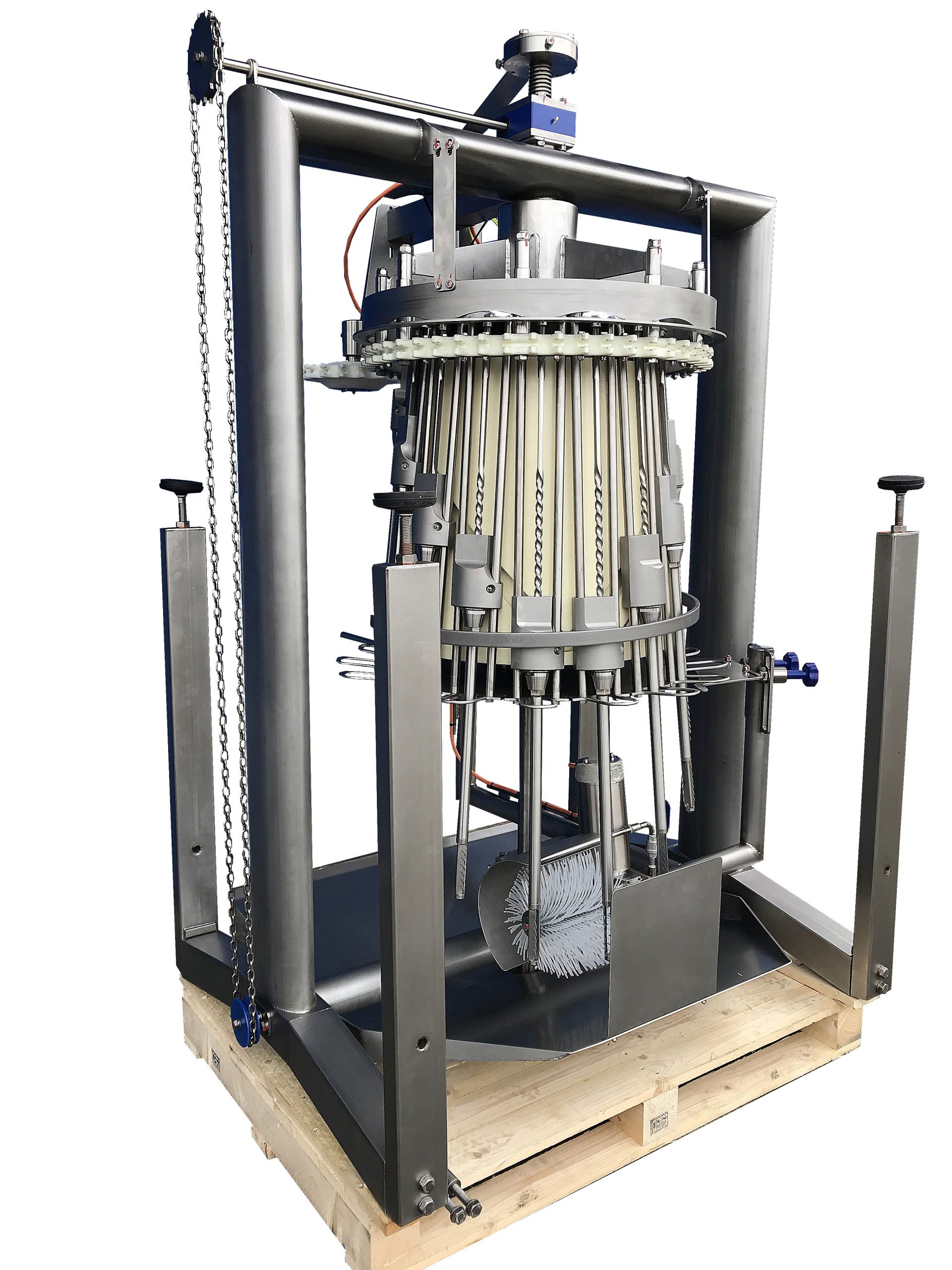

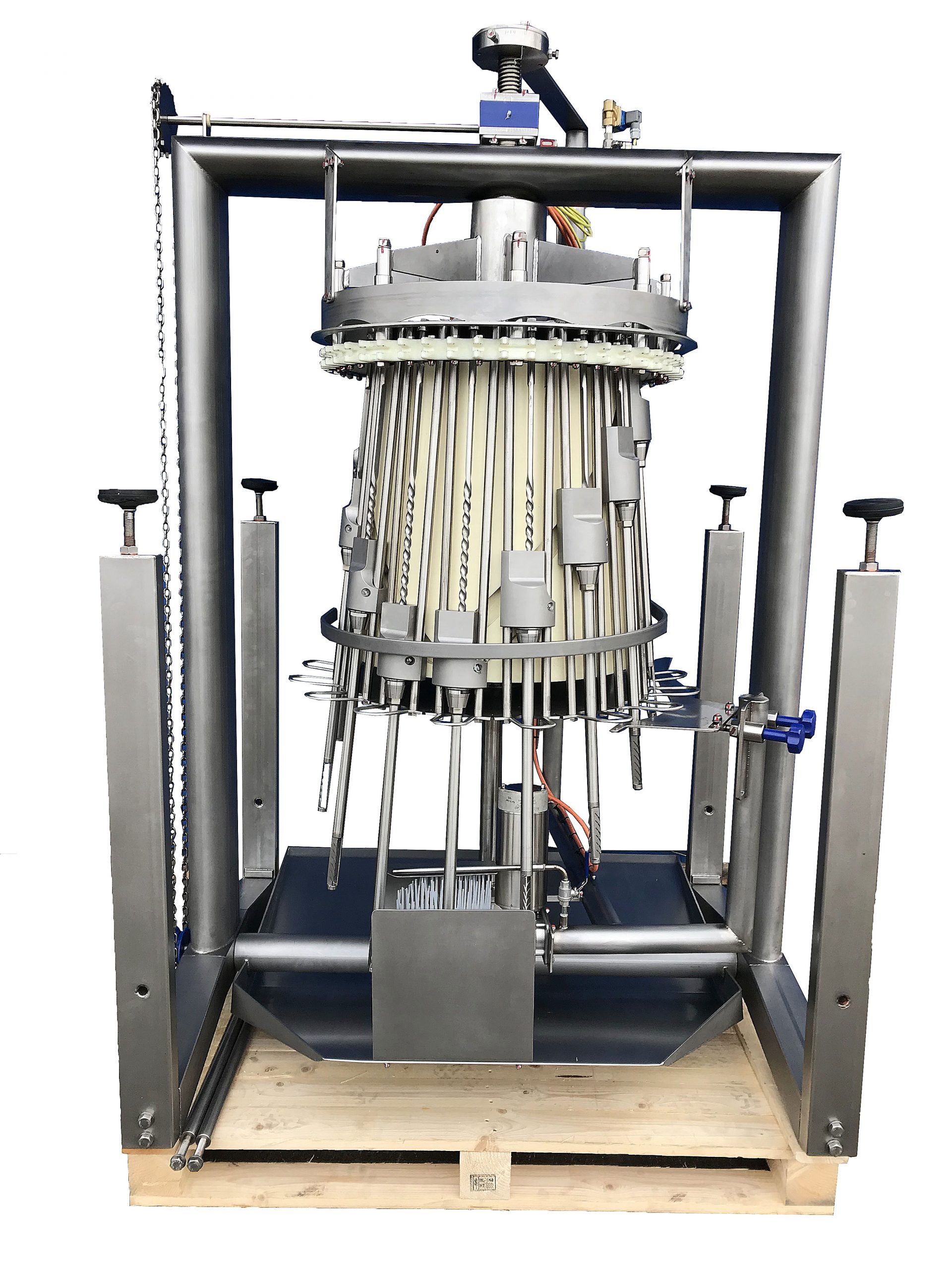

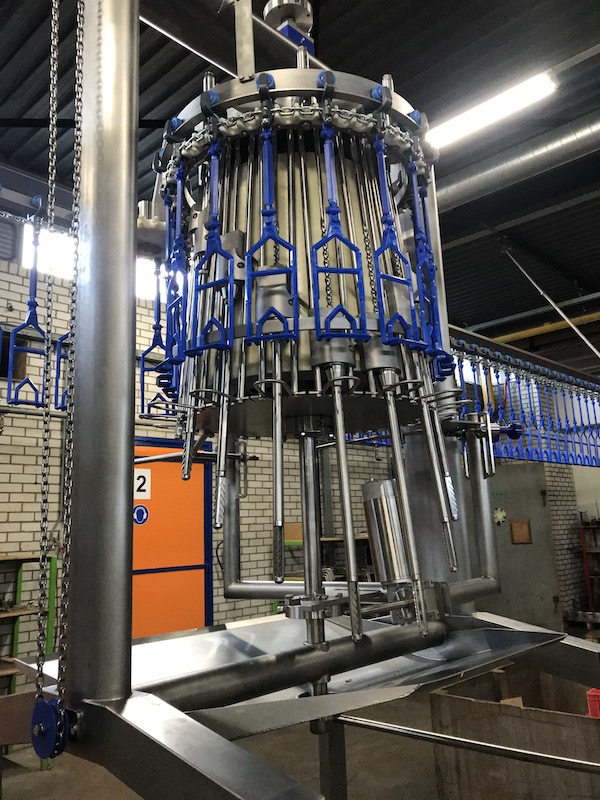

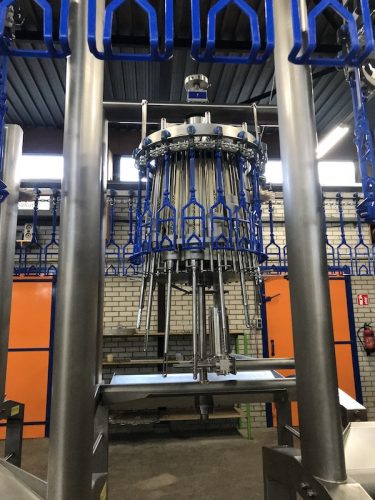

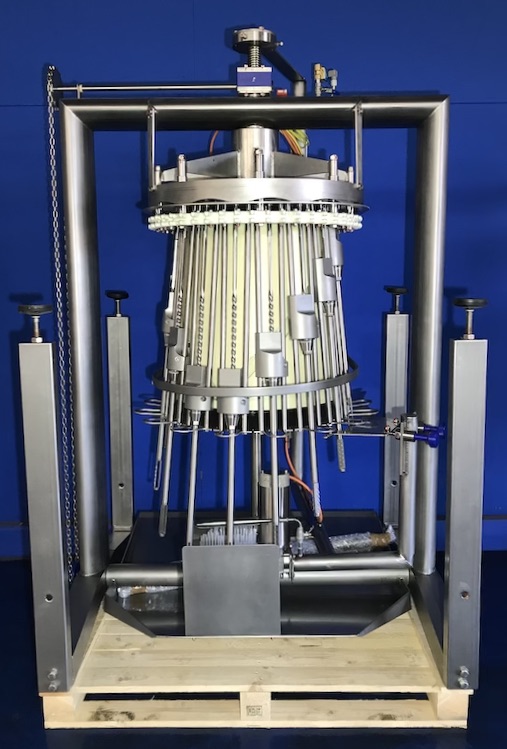

Cropper – Poultry Processing Equipment

  • Automatic Cropper removes the crop (rests), trachea (windpipe) and oesophagus from birds as part of an automatic evisceration line
  • The birds are correctly positioned by guides. Stainless steel rotating drilling units enter the cavity to remove any remaining parts of the crop.

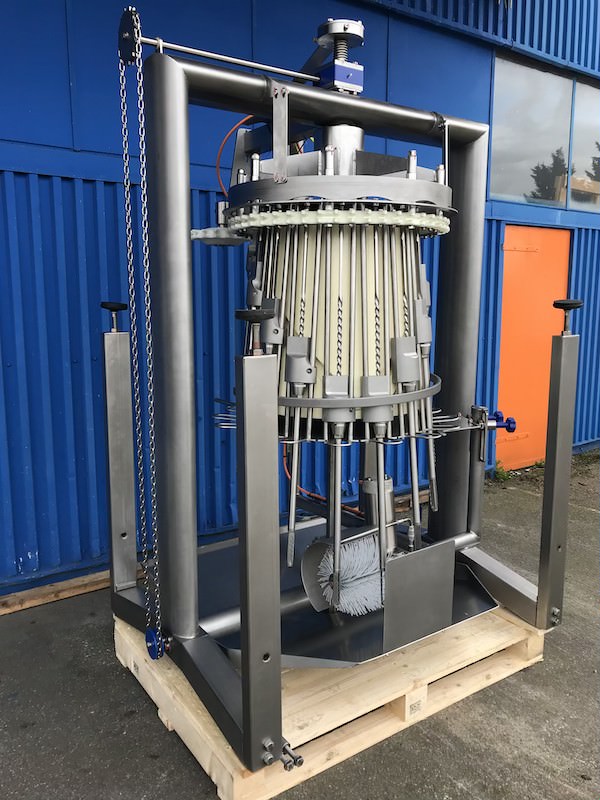

  • The drill will be cleaned by a rotating brush before leaving the cavity again.
  • The cropper drill driving mechanism leads to reduced mechanical wear and extended drill life cycle.
  • Capacity from 500 to 6000 birds per hour depending on configuration/model

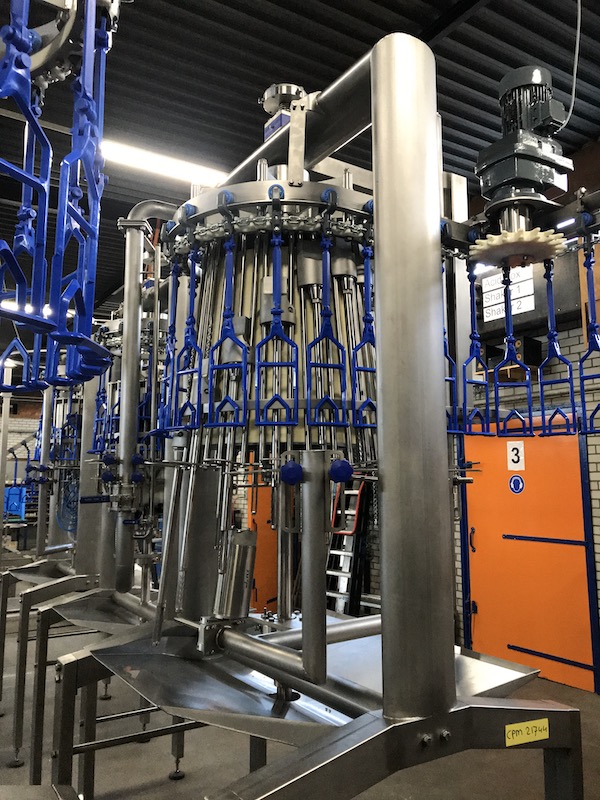

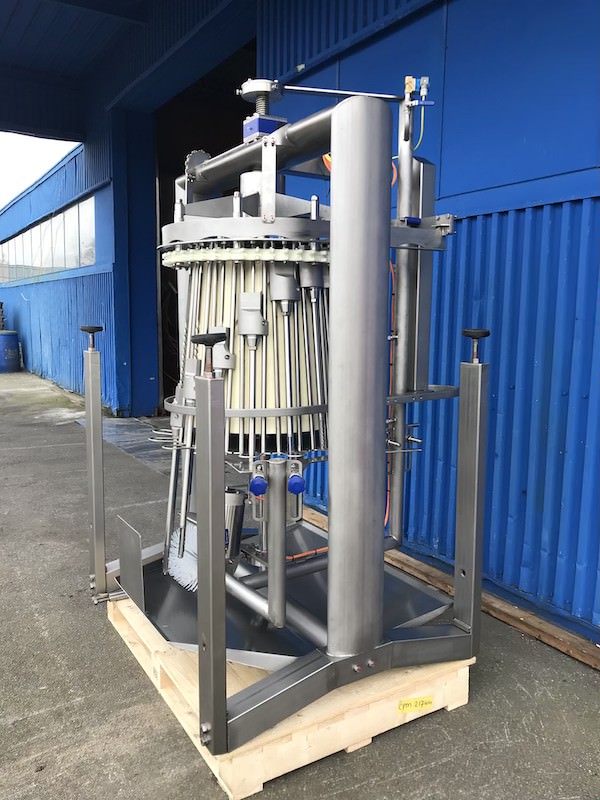

The automatic cropping machine is designed to remove the crop (rests), trachea (windpipe) and oesophagus from birds as part of an automatic evisceration line. The birds are correctly positioned by guides. Stainless steel rotating drilling units enter the cavity to remove any remaining parts of the crop. The drill will be cleaned by a rotating brush before leaving the cavity again. The cropper drill driving mechanism leads to reduced mechanical wear and extended drill life cycle.

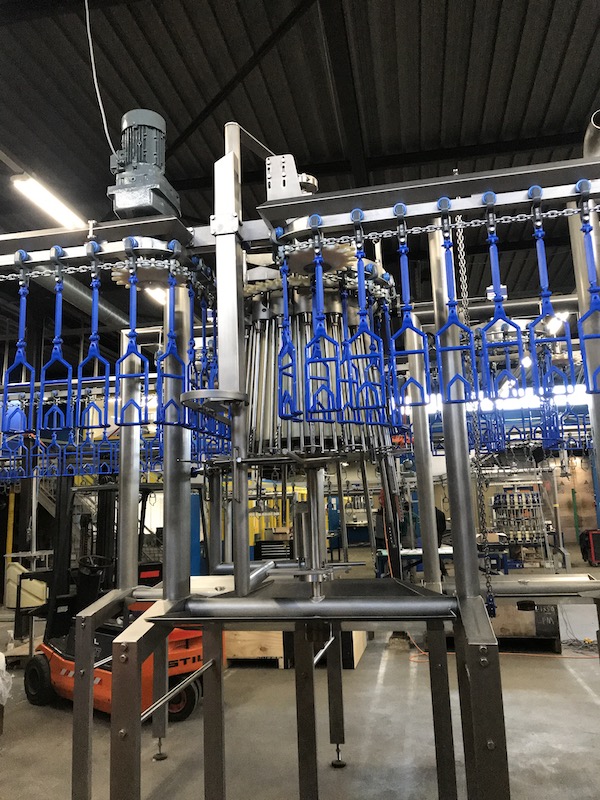

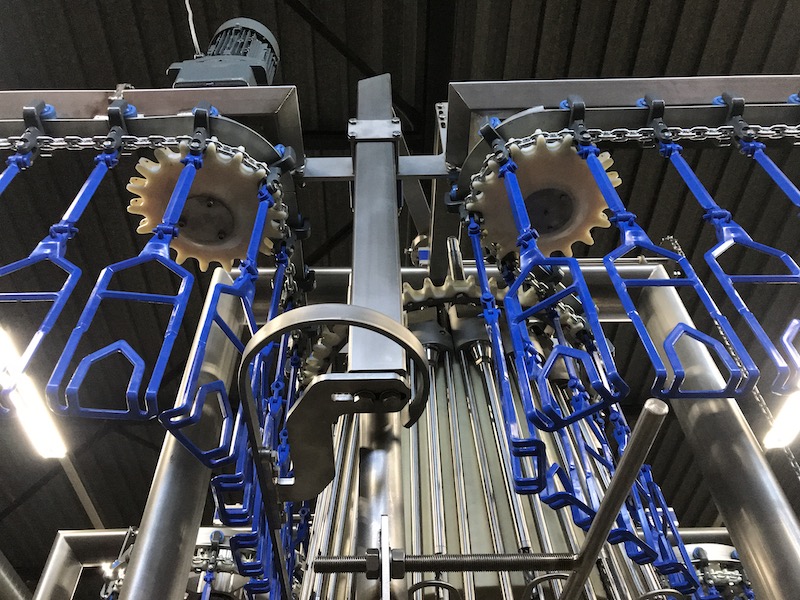

  • Driven by an overhead conveyor
  • Remaining windpipes and crops are removed
  • Stainless steel drilling units
  • Drill driving mechanism with reduced mechanical wear and extended drill life cycle
  • Made of stainless steel and other non-corrosive materials
  • Supplied with receiving bin with central drain
  • Height adjustment device
  • High quality design
Capacity500 - 3500 birds per hour
Live bird weight900-3000 grams
Number of units8 units
Shackle pitch12 inch
Length1600 mm *packed
Width1400 mm *packed
Height2450 mm *packed
Weightkg
Water connection
Water consumption

Capacity500-3500 birds per hour
Live bird weight1000 - 3500 grams
Number of units9 units
Shackle pitch8 inch
Lengthmm
Widthmm
Heightmm
Weightkg
Water connection
Water consumption

Capacity1500-4500 birds per hour
Live bird weight1100-2800 grams
Number of units12 units
Shackle pitch6 inch
Lengthmm
Widthmm
Heightmm
Weightkg
Water connection
Water consumption

Capacity4500 birds per hour
Live bird weight900-3000 grams
Number of units12 units
Shackle pitch8 inch
Lengthmm
Widthmm
Heightmm
Weightkg
Water connection
Water consumption

Capacity7500 birds per hour
Live bird weight900-3000 grams
Number of units16 units
Shackle pitch6 inch
Lengthmm
Widthmm
Heightmm
Weightkg
Water connection
Water consumption
