Inside / Outside Bird Washer – Poultry Processing Equipment

  • Automatic Inside / Outside Bird Washer thoroughly washes the interior and exterior of bird carcasses
  • Washing the birds after evisceration is done in an effort to improve microbiological quality of the birds by removing (washing off) any harmful organisms
  • Capacity from 3000 to 7500 birds per hour depending on configuration/model

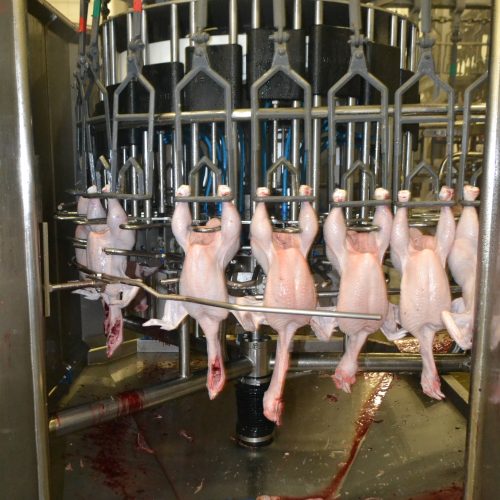

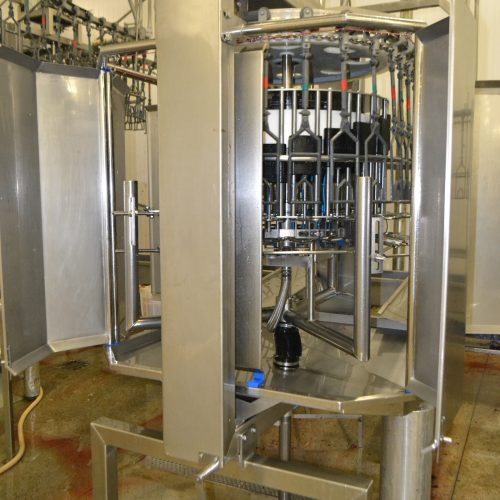

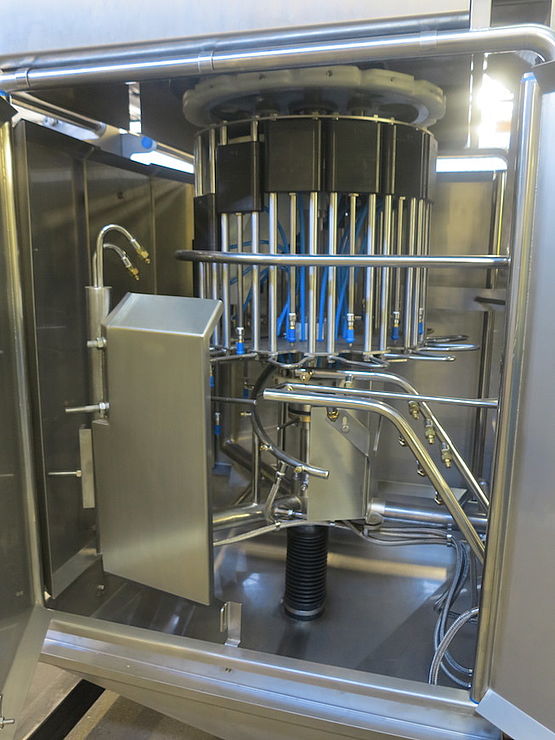

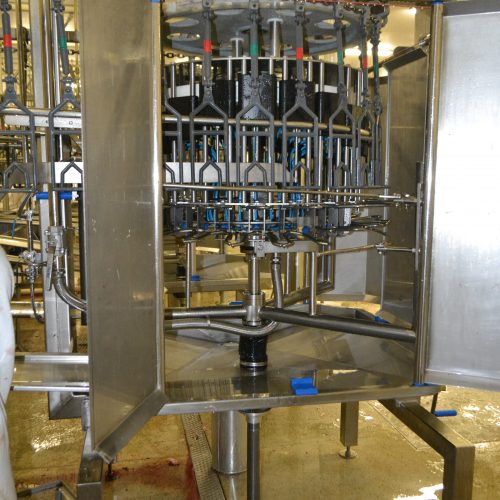

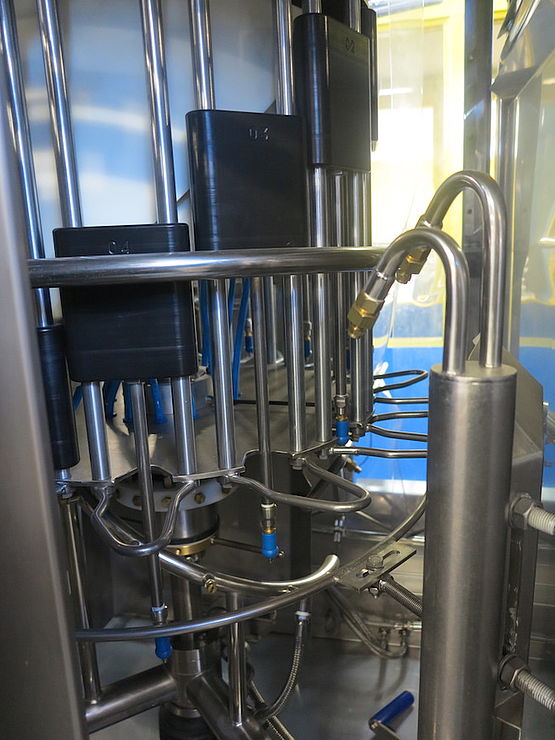

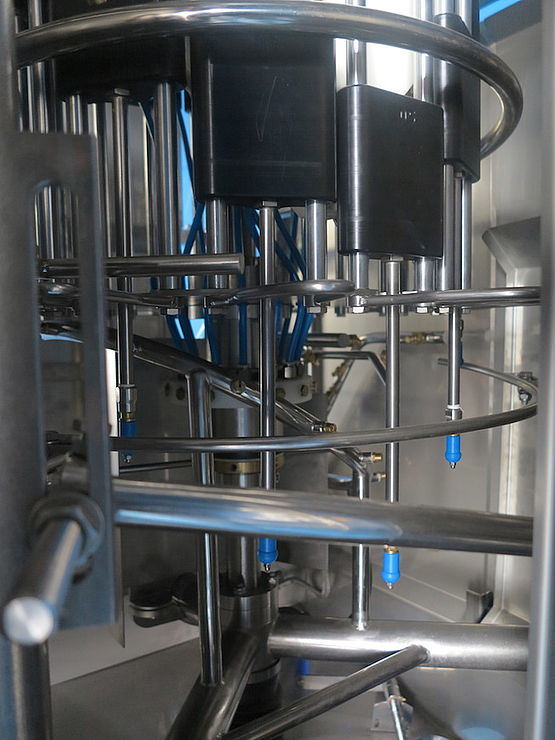

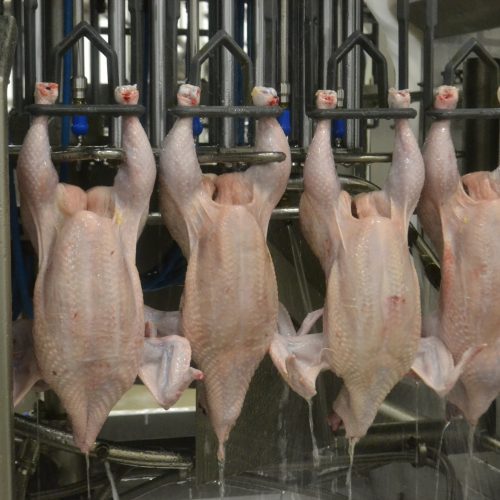

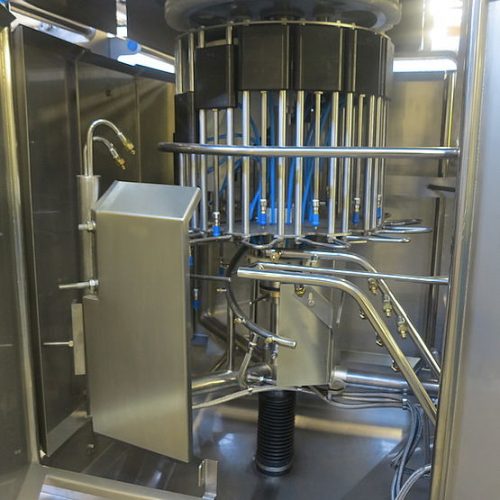

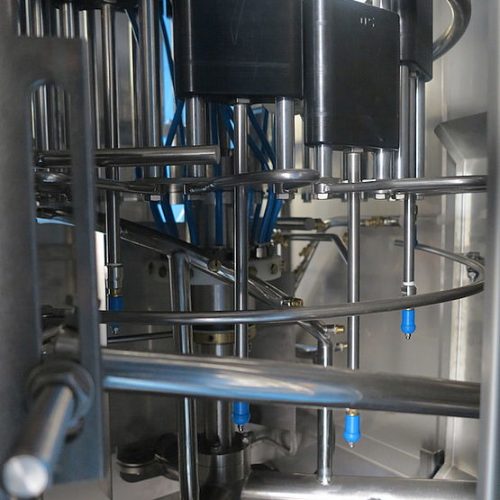

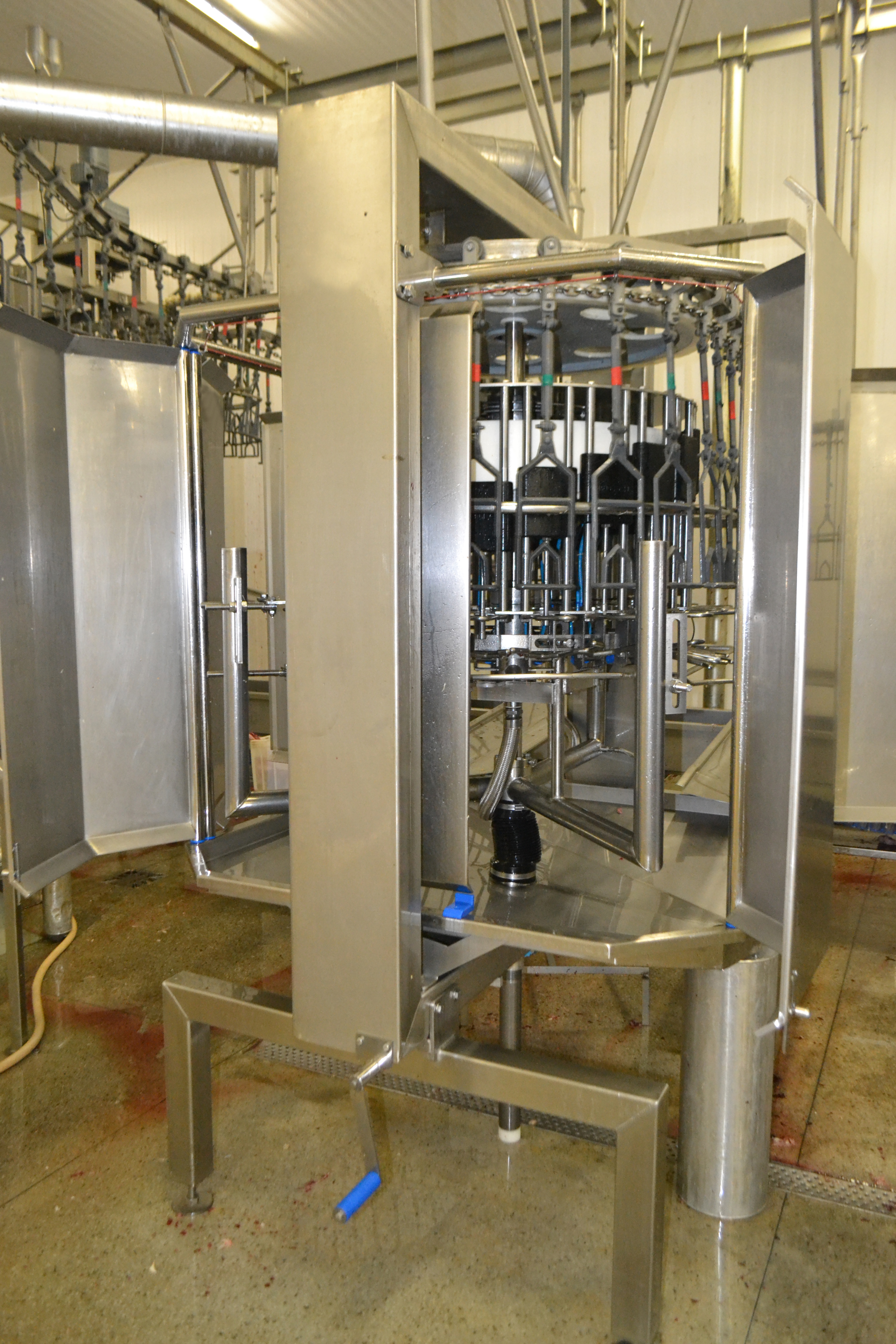

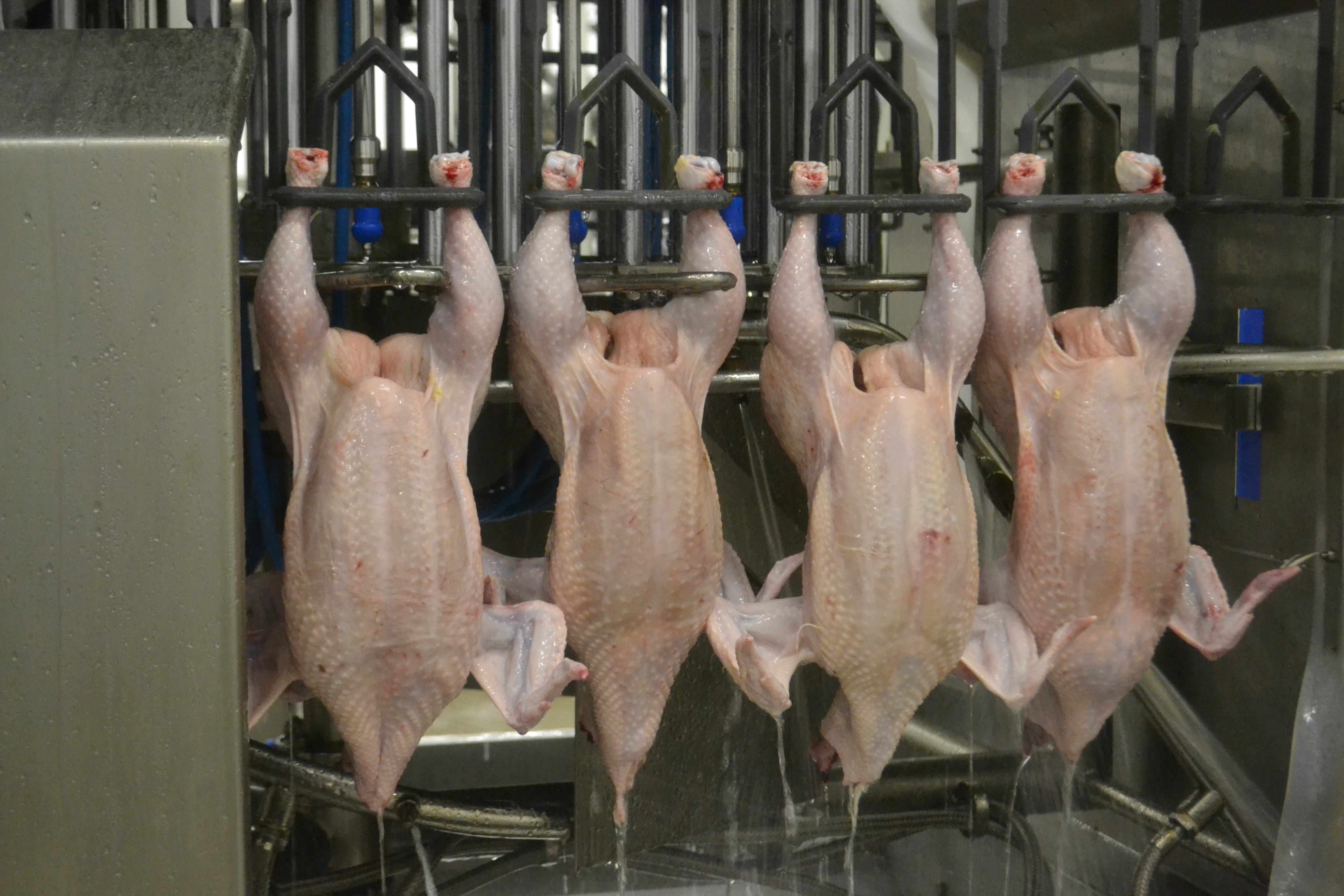

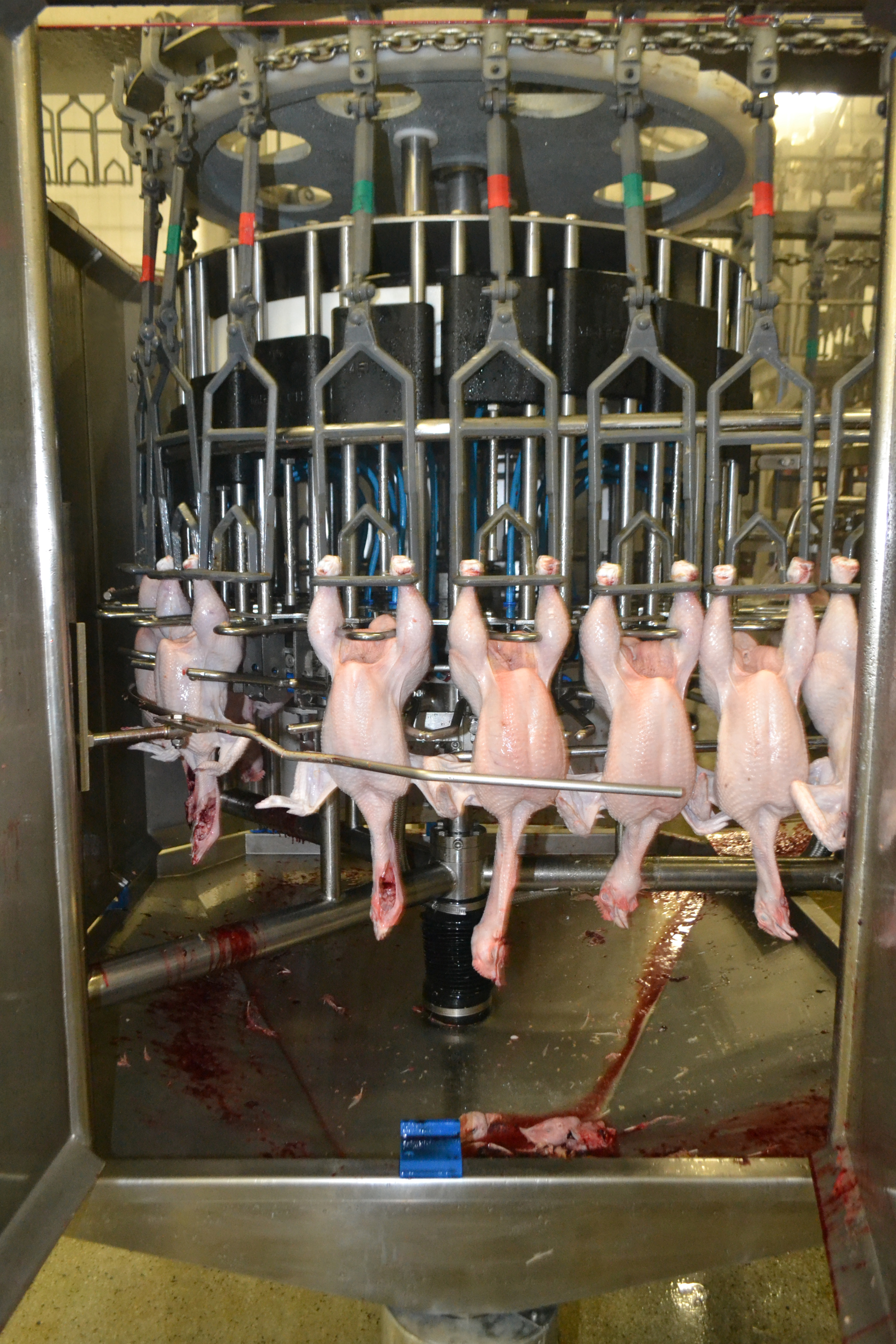

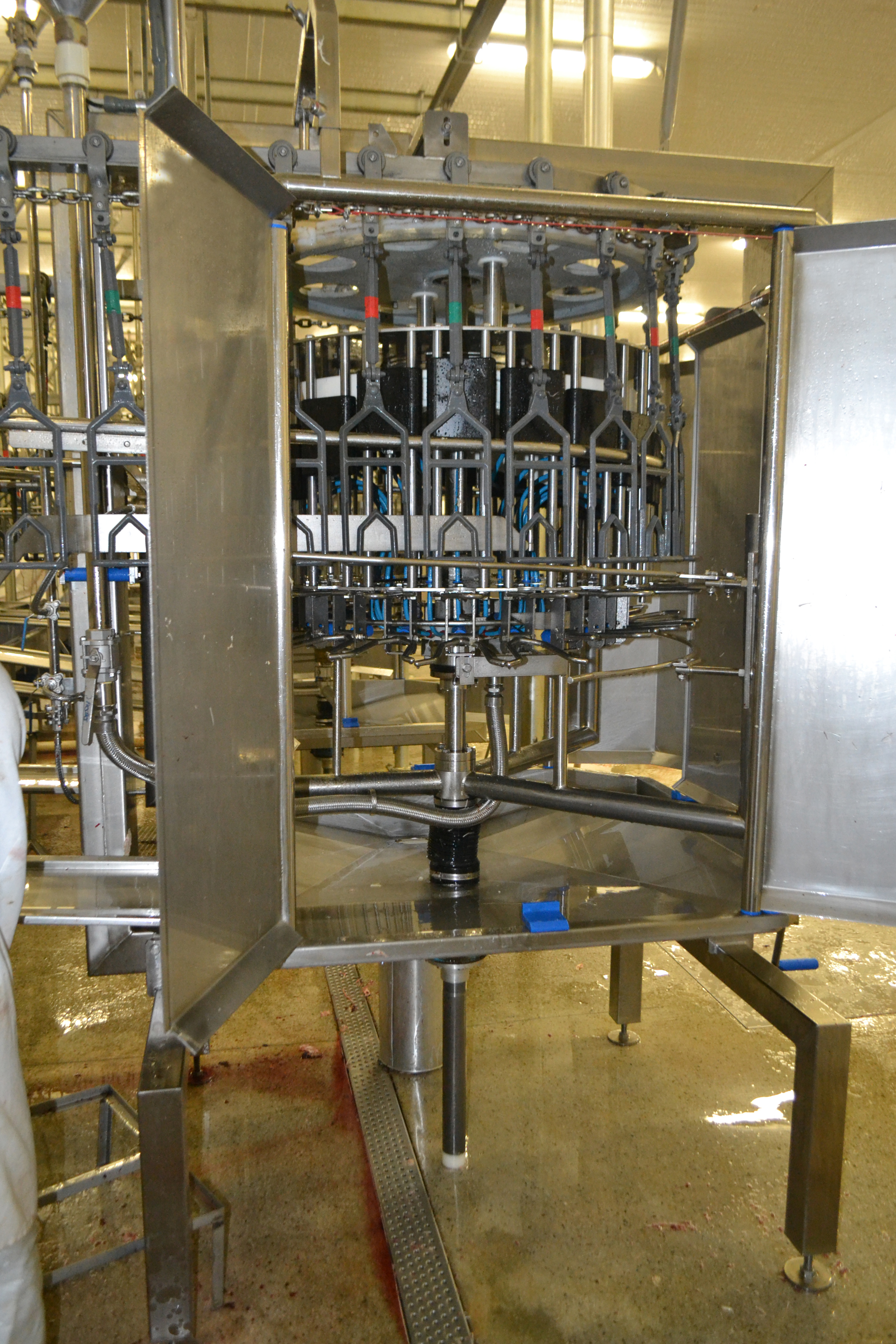

The inside / outside bird washer thoroughly washes the interior and exterior of bird carcasses. Its washing units have spray pipes with high pressure spiraled nozzles which enter the carcass to clean and spray the bird from the inside. There are also multiple nozzles installed to completely wash the birds from the outside. Washing the birds after evisceration is done in an effort to improve microbiological quality of the birds by removing (washing off) any harmful organisms.

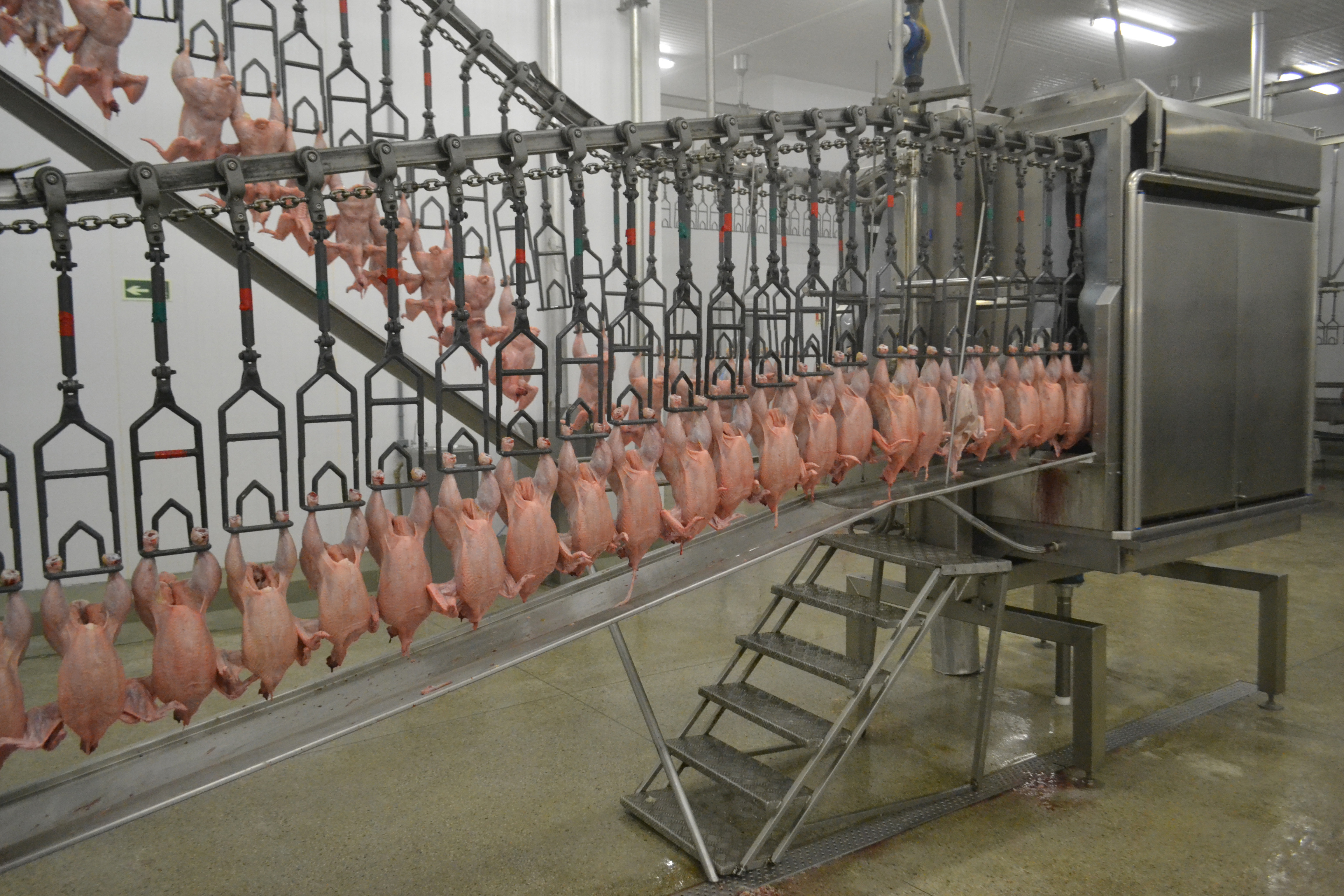

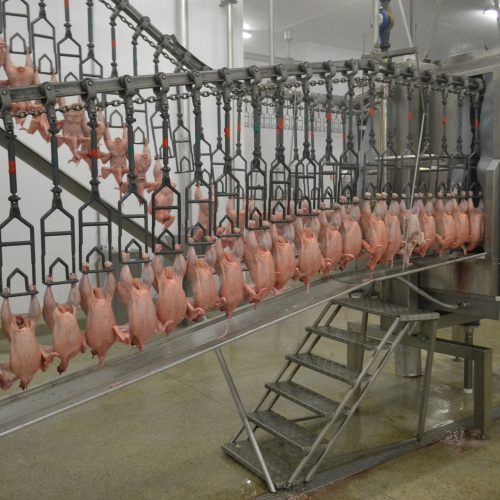

  • Driven by an overhead conveyor
  • Thoroughly spray washing the birds both inside and outside

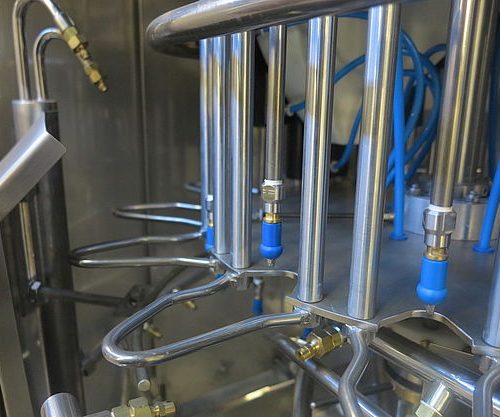

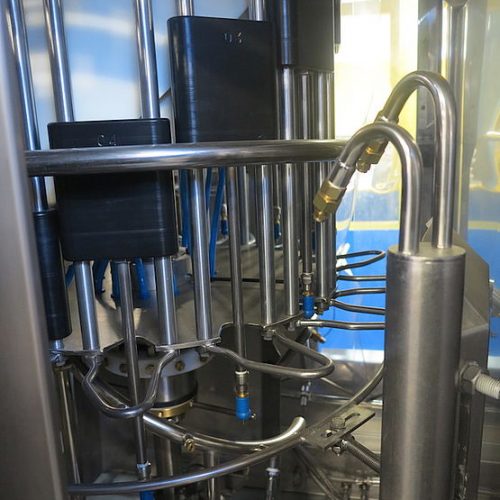

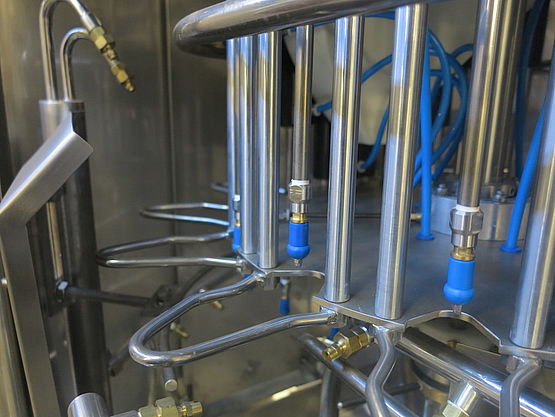

  • Wash units are equipped with spray pipes with a spiral high pressure nozzle
  • The water supply is controlled by a leakage free automatic control valve
  • No water wastage

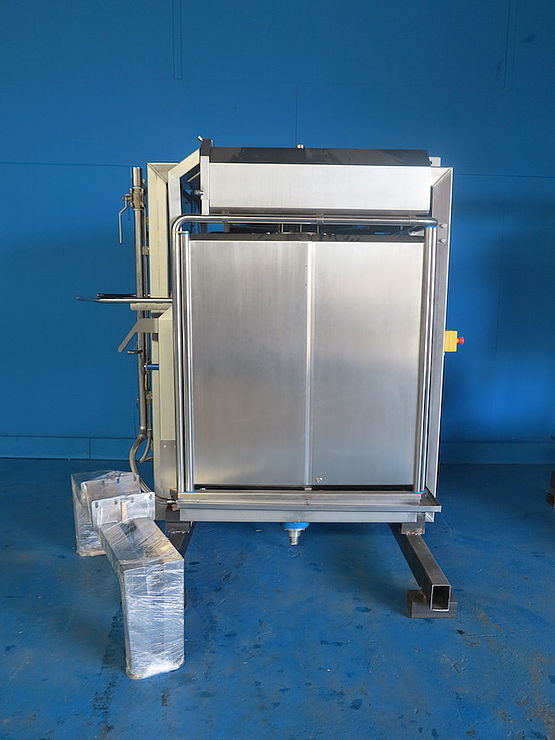

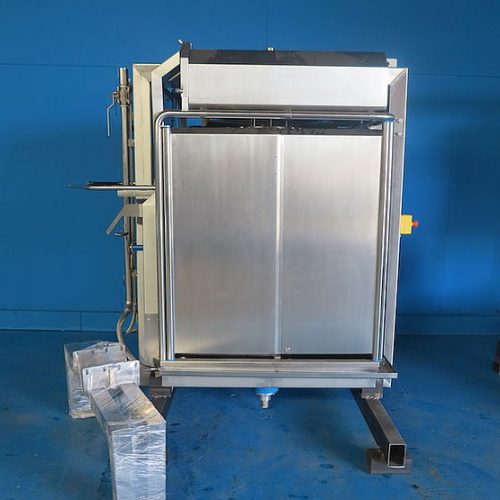

  • Made of stainless steel and other non-corrosive materials
  • Supplied with receiving bin with central drain
  • Height adjustment device included
  • High quality design
  • Water consumption 2-5 m3/h



Capacity3000 birds per hour
Live bird weight900-3200 g (max weight variance in one flock is +/- 150g in case of live weight 700 - 1200 grams and +/- 300g in case of live weight 1200 - 1700 grams)
Number of units7
Shackle pitch12 inch
Length1800 mm
Width1700 mm
Height1800 mm
Weight870 kg
Water connection3/4" BSP
Water consumption1 l/bird

Capacity6000 birds per hour
Live bird weight900-3200 g (max weight variance in one flock is +/- 150g in case of live weight 700 - 1200 grams and +/- 300g in case of live weight 1200 - 1700 grams)
Number of units14
Shackle pitch6 inch
Length1800 mm
Width1700 mm
Height1800 mm
Weight870 kg
Water connection3/4" BSP
Water consumption1 l/bird

Capacity6500 birds per hour
Live bird weight900-3200 g (max weight variance in one flock is +/- 150g in case of live weight 700 - 1200 grams and +/- 300g in case of live weight 1200 - 1700 grams)
Number of units15
Shackle pitch8 inch
Length2300 mm
Width1500 mm
Height2530 mm
Weight1150 kg
Water connection3/4" BSP
Water consumption1 l/bird
