Inside / Outside Bird Washer – Poultry Processing Equipment

  • Automatic Inside / Outside Bird Washer thoroughly washes the interior and exterior of bird carcasses
  • Washing the birds after evisceration is done in an effort to improve microbiological quality of the birds by removing (washing off) any harmful organisms
  • Capacity from 500 to 6000 birds per hour depending on configuration/model

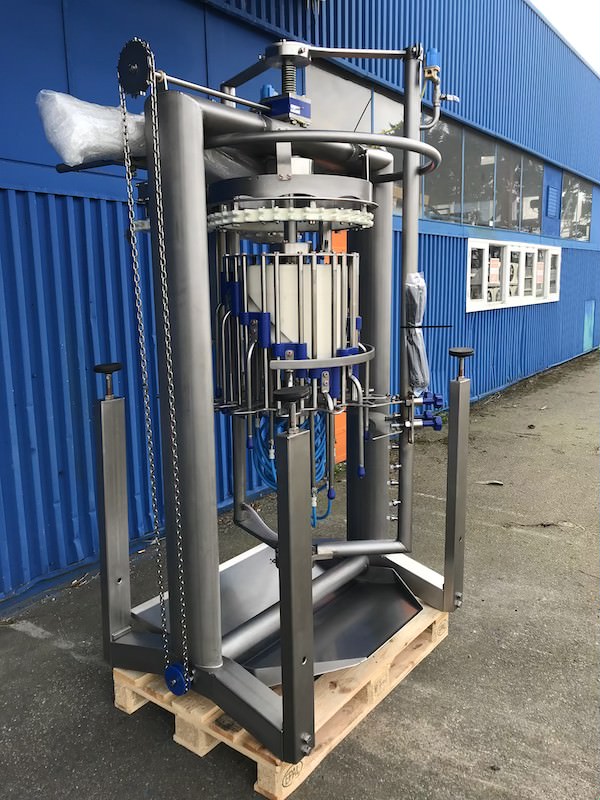

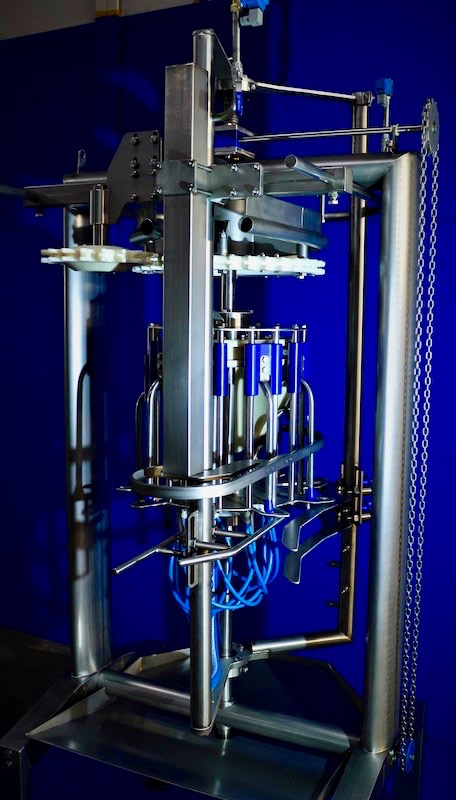

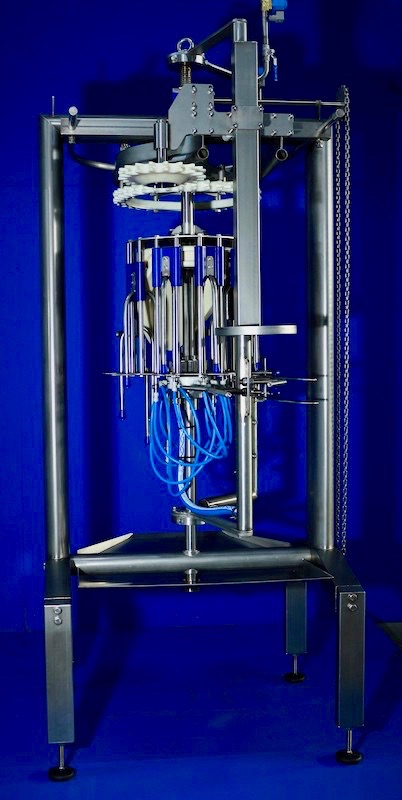

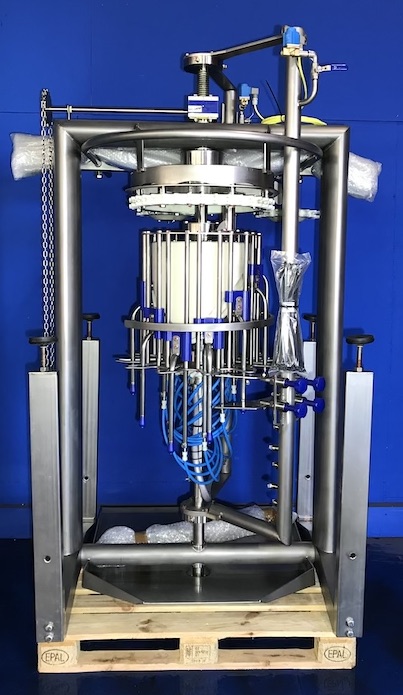

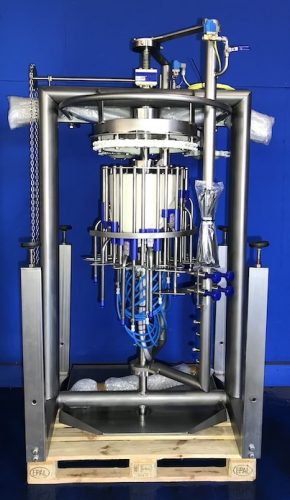

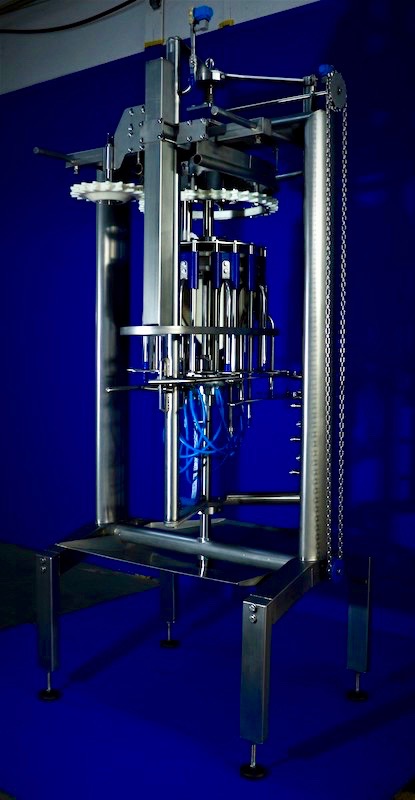

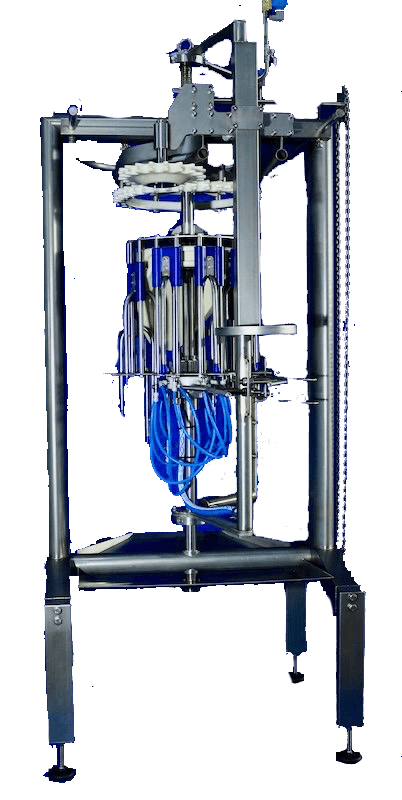

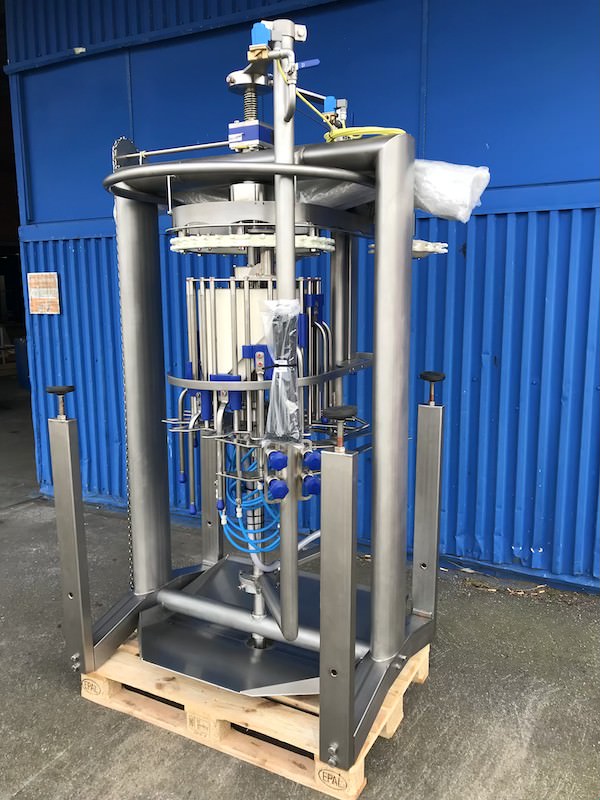

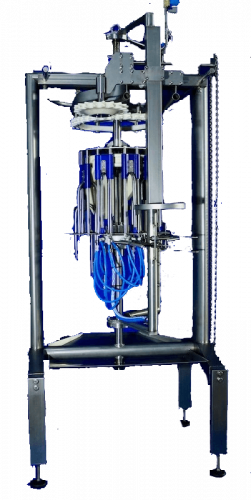

The inside / outside bird washer thoroughly washes the interior and exterior of bird carcasses. Its washing units have spray pipes with high pressure spiraled nozzles which enter the carcass to clean and spray the bird from the inside. There are also multiple nozzles installed to completely wash the birds from the outside. Washing the birds after evisceration is done in an effort to improve microbiological quality of the birds by removing (washing off) any harmful organisms.

  • Driven by an overhead conveyor
  • Thoroughly spray washing the birds both inside and outside

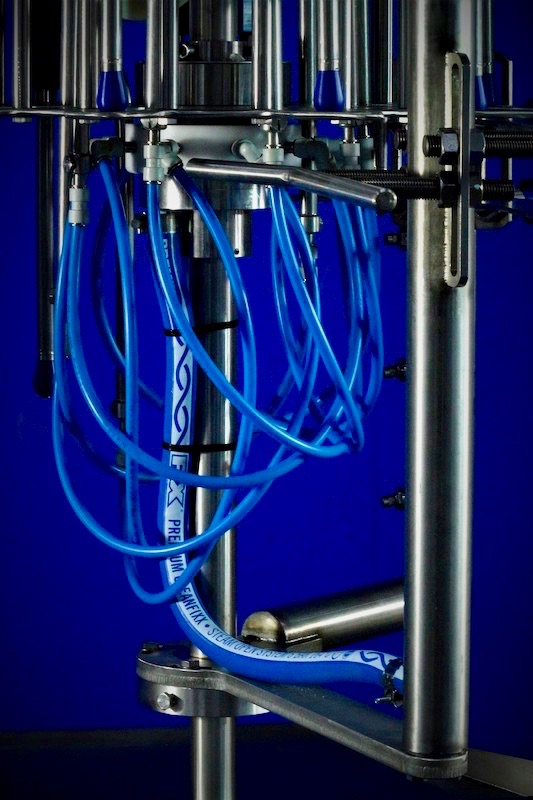

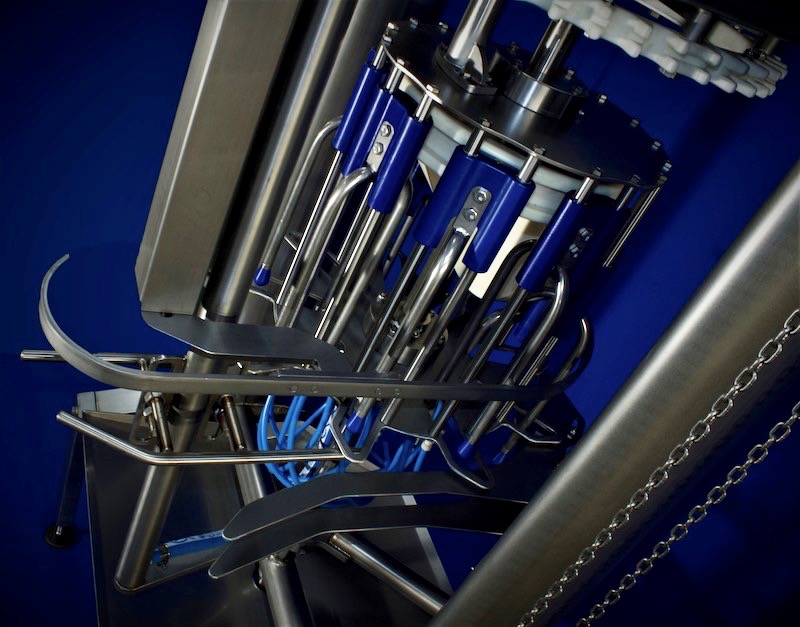

  • Wash units are equipped with spray pipes with a spiral high pressure nozzle
  • The water supply is controlled by a leakage free automatic control valve
  • No water wastage
  • Made of stainless steel and other non-corrosive materials
  • Supplied with receiving bin with central drain

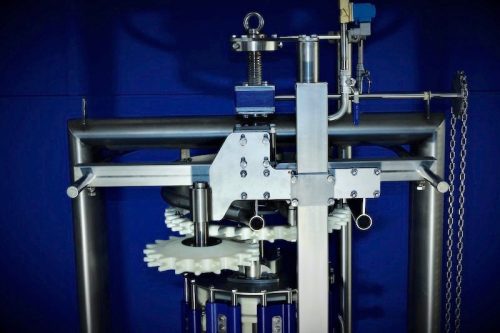

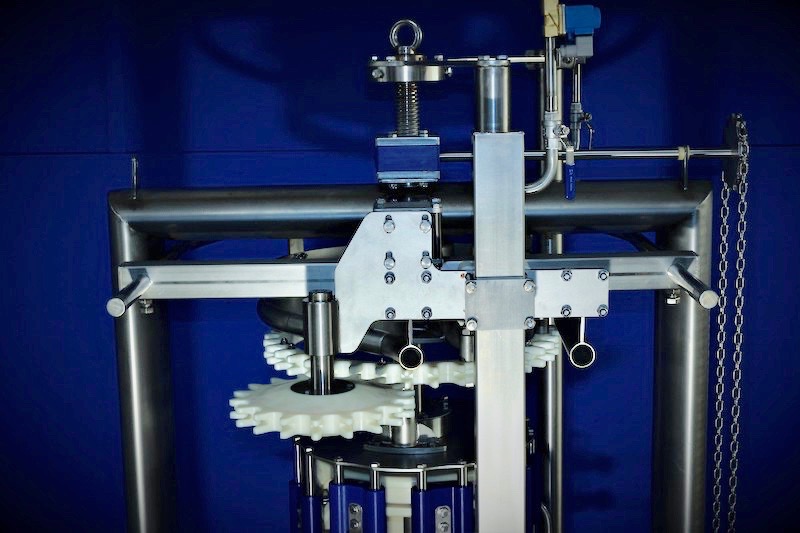

  • Height adjustment device included
  • High quality design
  • Water consumption 2-5 m3/h



Capacity1750 birds per hour
Live bird weight900-3000 grams
Number of units6 units
Shackle pitch12 inch
Length1200 mm
Width900 mm
Height2350 mm
Weightkg
Water connection
Water consumption

Capacitybirds per hour
Live bird weight900-3000 kg
Number of units7 units
Shackle pitch12 inch
Length1200. mm
Width900 mm
Height2350 mm
Weightkg
Water connection
Water consumption

Capacity500-3500 birds per hour
Live bird weight1000 - 3500 grams
Number of units9 units
Shackle pitch8 inch
Length1200 mm
Width900 mm
Height2350 mm
Weightkg
Water connection
Water consumption

Capacity1500-6000 birds per hour
Live bird weight1100-2800 grams
Number of units12 units
Shackle pitch6 inch
Length1200 mm
Width900 mm
Height2350 mm
Weightkg
Water connection
Water consumption

Capacitybirds per hour
Live bird weight900-3000 grams
Number of units14 units
Shackle pitch6 inch
Length1200 mm
Width900 mm
Height2350 mm
Weightkg
Water connection
Water consumption
