Crate Washer

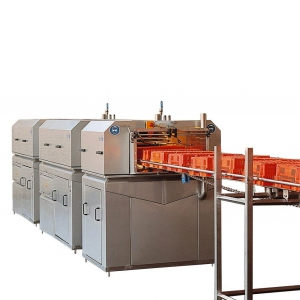

In-line crate washer for live bird crates, capacity max. 450 crates/hour, manufactured out of stainless steel and other non-corrosive materials. The machine is suitable to handle live bird crates of 860 x 650 x 300 mm.

thumb: In-line crate washer for live bird crates, capacity max. 450 crates/hour, manufactured out of stainless steel and other non-corrosive materials. The machine is suitable to handle live bird crates of 860 x 650 x 300 mm.

In-line crate washer for live bird crates
Thorough, quick and continuous cleaning
Manufactured out of stainless steel and other non-corrosive materials
Suitable to handle live bird crates of 860x650x300mm (LxWxH)

Select a model:

Quantity:

View details
View specifications

The washing cycle takes place in a 3-stage process. The 3 different stages can be identified as follows:

loading and unloading section
main wash section
rinse section

The machine is supplied with:

Crate transport system by means of a nylon chain conveyor frequency controlled
PLC controller
high pressure water pump, 11kW, 3 bar
Sieve filter
Set of spare parts
Max. crate dimensions: 860 x 650 x 300 mm

Optional:

Stainless steel hot water boiler, 15kW (95°C). Depending on the incoming water temperature one (T ≥ 50°C) or two boilers are required.

In-line crate washer 200CPH

012.0003

Capacity	200 crates per hour
Crate dimensions	860 x 650 x 300 mm

In-line crate washer 450CPH

012.0004

Capacity	450 crates per hour
Crate dimensions	860 x 650 x 300 mm

In-line crate washer 600CPH

012.0005

Capacity	450 crates per hour
Crate dimensions	860 x 650 x 300 mm
